Configuration and packing specification of double chamber vacuum packing machine for soybean meal

Soybean meal is the product left over from the extraction of soybean oil. It used to be used as feed, but I think it can also be used to develop delicious meal substitutes.If this is the case, the soybean meal as a raw material, in food hygiene such as moisture and dust, storage and other aspects need to be considered, vacuum packaging will be used!

According to the size of soybean meal packaging specifications and production requirements, you can consider using single-chamber vacuum machine, two-chamber vacuum machine, rolling packaging machine, to bag vacuum machine, in which a lot of is a two-chamber, that interested friends can look at this soybean meal two-chamber vacuum packaging machine!

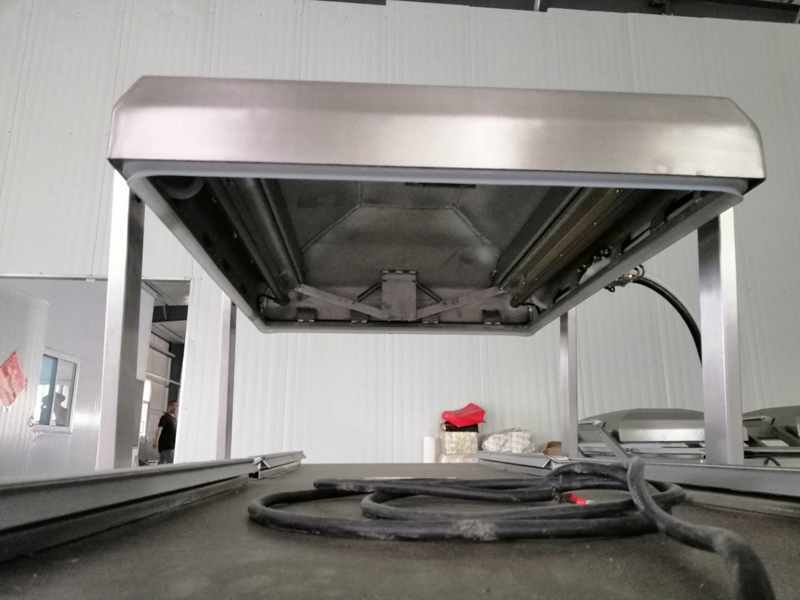

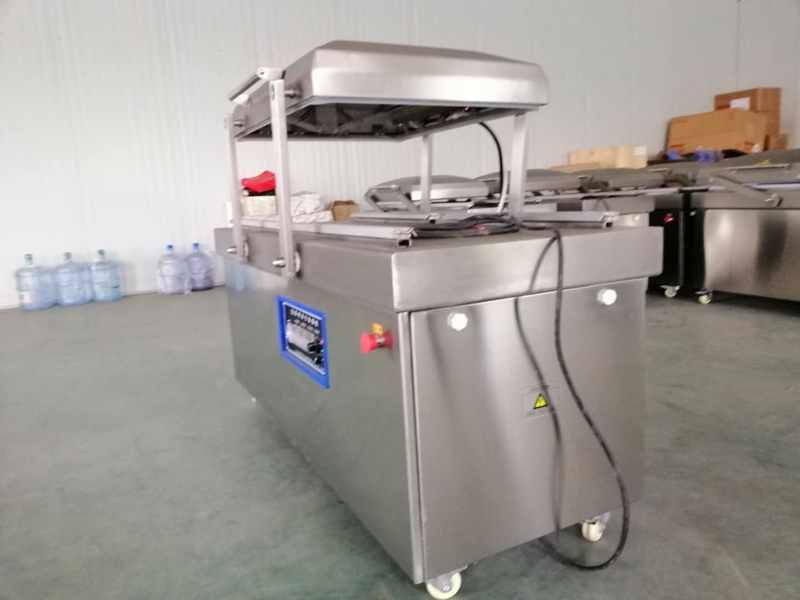

The function of vacuum packaging is to protect products from environmental pollution and extend the preservation period of food, prevent the moldy deterioration of packaged food, and resist pressure and gas.Soybean meal double chamber vacuum packaging machine model 400, 500, 600, 700, 800, the several kinds of specifications, of course, can also be customized according to the size of the product, such as order 650, if it is contained a liquid products such as pickles, pickles or large packaging products (of course is not too heavy, if the volume is big and heavy and items can be used to pump type packing machine), can also be customized recessed under;If only packaging products within 10 cm, you can order four sets of lines, the bag is very long can also be customized according to different packaging materials vertical line vacuum packaging machine......I found several pictures of vacuum packing machines from different studios on the Internet to share with you:

At present, among the people who use vacuum packing machine, 80% of the users will consider using model 600 double-chamber vacuum packing machine, so the following take model 600 as an example, talk about the configuration and packaging specifications of soybean meal double-chamber vacuum packing machine.

Soybean meal double chamber vacuum packaging machines, vacuum chamber size length is 766 mm, width is 625 mm, height is 100 mm, the regular 600 soymeal double chamber vacuum packaging machine sealing length is 600 mm (the use of the actual length is 590 mm), a total of four, because white silicone bar length is size, so the sealing width in 8-10 mm, of course, if you want to order 12 mm, also can do!The distance between the two sealing lines in a studio of 600 is 505mm.Know the parameters of a machine, give you a bag specification, so you can calculate the output of this bag!For dry products like soybean meal, vacuuming is easy. A type 63 vacuum pump will do. For example, the packing bag is 200mm wide and 25mm long.

The air extraction time is set to 15 seconds, and the time of gland, vacuum, air release, delay and cover lifting is 20 seconds in total. The packaging capacity can be achieved as follows: three packs in one minute, four packs in one minute, 12 packs in one minute and 720 packs in one hour. Some people may ask why not six packs in one time?It has been said that the packaging machine has errors in the production process. The length of 600 sealing line is 600mm, and its actual length of available sealing is 590mm, so only four bags can be placed!

Soybean meal two-chamber vacuum packing machine main configuration:

[1] equipped with vacuum pump imported from Germany (domestic vacuum pump is optional)

[2] waterproof vacuum pump computer board (or time relay) control

[3] made of 304 stainless steel, the work table and vacuum chamber are 3mm thick stainless steel

[4] intermediate air extraction is adopted

[5] dachang solenoid valve and zhengtai electric appliance

[6] imported sealing ring

[7] dual temperature and dual control

[8] the vacuum tube and gasket are made of silica gel

[9] the brake casters can be moved

After many people's efforts, the current soybean meal two-chamber vacuum packing machine has a longer service life, and the seal is more beautiful and reliable.This is what I know about soybean meal two-chamber vacuum packaging machine knowledge, published to find out the relevant information to help people.
