What are the main models of two-room vacuum packaging?
Two-compartment vacuum packaging machine is the most widely used in the vacuum packaging industry, accounting for 80% of the vacuum packaging industry.
The commonly used models of dual-chamber vacuum packing machine are 600, 700 and 800, and their technical features are as follows:
1.The surface of stainless steel shell is treated by many special processes, the drawing panel is even and luxurious, and it has the advantages of resisting dirt and scratch.
2.Sealing temperature with high, medium and low three levels.
3.The sealing time can be adjusted within the range of 0-99.9s.
4.There is an emergency stop button on the control panel. If there is any abnormality in the packaging process, press the emergency stop button to interrupt the packaging process for safe use.
5.High quality high power vacuum pump, good vacuum effect.
6.Use well-known brand electrical components, stable performance, long service life.
7.Can be equipped with inflatable device, can also be customized according to customer requirements vacuum machine.

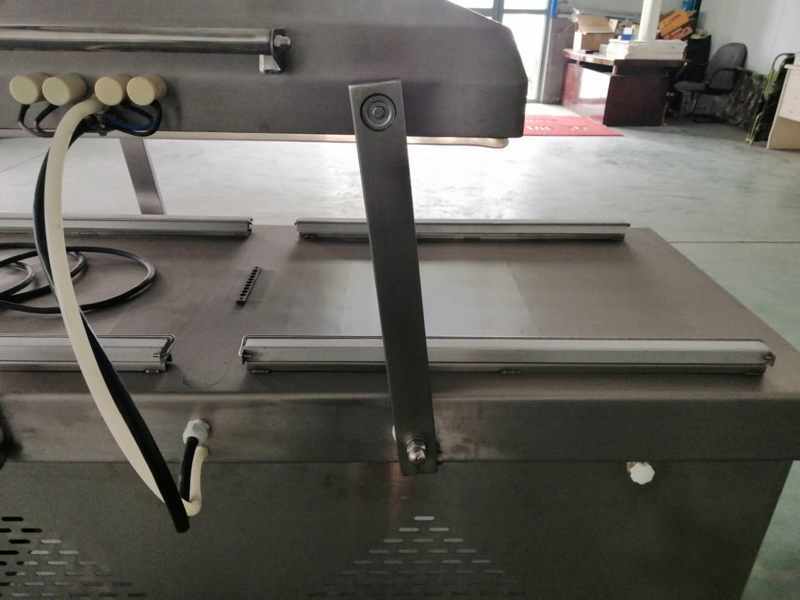

8.The machine has two workrooms, and the length of zui large seal of a single workroom is 600mm/700mm/800mm.The working efficiency is 1.5 times that of single chamber vacuum packing machine.
9.The vacuum packing machine studio for the flat, in addition to the grooves available.
Comparison of technical parameters of each type of two-compartment vacuum packaging machine:
Model dz-600 /2S dz-700 /2S dz-800 /2S
Power supply voltage: 380V/50HZ
Power 3KW 3.5kw 5.5kw
Vacuum chamber size: 760*620*160mm 825*665*160mm 820*780*190mm
Overall dimensions: 1470*760*950mm 1600*805*950mm 1830*940*1050mm
Sealing length: 600*10mm 700*10mm 800*10mm
Packaging speed 2-5pcs/min 2-5pcs/min 2-5pcs/min
Number of hot seals: 4 PCS 4 PCS 4 PCS
Vacuum pump discharge 66-100m3/h 100m3/h 100-200m3/h
It weighs 260kg 330kg 400kg
There are many kinds of double - chamber vacuum packing machine.
A) packing speed.In order to improve the production efficiency, we can choose the vacuum packing machine with two or more rooms to improve the whole
Production schedule.
B) whether other protective gases should be filled for the packed goods.Can choose a multi - function vacuum packing machine with inflation device.
C) the vacuum degree of the packaged goods.If the packaging items need to be in high vacuum conditions can be well preserved, you need to choose cavity vacuum packaging machine.
D) requirements of the composition state of the packaged goods on vacuum packaging machine.
When choosing, choose aluminum alloy for dry and non-corrosive materials such as solids and particles, and choose stainless steel or aluminum magnesium alloy for materials with soup and high salt and acid content.The sealing ring generally USES silicon rubber, black rubber, a few low-grade products use foamed rubber, silicon rubber high temperature resistance, corrosion resistance, good sealing, long service life, foamed rubber poor sealing, easy to fall off, short service life.
Operation method of two-compartment vacuum packing machine:
A: open the side cover plate and add the randomly distributed vacuum pump oil into the vacuum and add it to 2/3 of the viewing glass hole
B: connect the power, please ground it before use, turn on the power switch, and set the vacuum time according to the requirements of vacuum packaging
C: set the sealing temperature and time according to the material of vacuum bag
D: place the product on the seal strip
E: press down the vacuum cover and start pumping
F: when a certain vacuum degree is reached, it enters the sealing process
G: cooling state will be entered after sealing, and then air will be released to complete packaging
To sum up, different packaging and output requirements, you can choose different vacuum packaging machine, if you have any questions, please contact us for detailed consultation!
