What are the advantages of continuous automatic vacuum packing machine over double chamber vacuum pa
Main effect of vacuum packaging machine is vacuum packaging, vacuum packaging, as we speak, its main role is to take out all of air inside the packaging, to keep the bag is in a state of high pressure, due to less air is equivalent to the condition of hypoxia, the microbe without survival conditions, so that to reach the purpose of the product for preservation and disease-free.
Continuous automatic vacuum packaging machine only needs manual placement of products, which saves the traditional machine manual bagging time, improves efficiency, and also saves labor costs. The following is a detailed understanding of the advantages of continuous automatic vacuum packaging machine over double-chamber vacuum packaging machine from the working principle and output.
Operation method of two-chamber vacuum packing machine: first, connect the power supply to ensure that the vacuum pump does not reverse;Then: set the air extraction time, heating time, and air extraction time. Customers can conduct more tests. The heating time is generally set between 2-4 seconds according to the thickness of the bag.3: close the cover equipment, vacuum pump began to pull out the air from the studio, when meet the extraction time setting of the vacuum pump stop working, and then the pressure valve opens automatically, balloon inflated, gasbag plate, phenolic board, heating the whole press tight pincer-like device, article can give heating electric heating at the same time, when the packing sealing after complete, heating stop heating in a constant temperature state, purge valve automatically open, into the air, open, complete a work cycle.
And continuous automatic vacuum packaging machine process description: film under continuous packing machine adopts membrane, membrane on the use of composite membrane, the membrane using stretch film, the film through the chain of clamping leads into the forming mould, by heating and pressure in the molding mold and molding, to make it will stretch film under the need of groove shape, the pendulum areas will be packaging products (through the pendulum feeder) into the already in stretch forming of the membrane, as the chain run forward into the sealing mould, in the sealing mould will membrane attached next film, vacuum first, then the sealing (upper and film together).Then exhaust the air, drop the mold, the packaged products continue to run forward, first through the mobile inkjet system to print the production date of each product.In the crosscutting area, the product is cut horizontally into a single row, and then the longitudinal cutting device will cut the product longitudinally, so that each product is individually shaped.The device also adds a cursor alignment color film system to save the user money.To configure waste side material recycling suction cylinder system for users, maintain environmental hygiene.

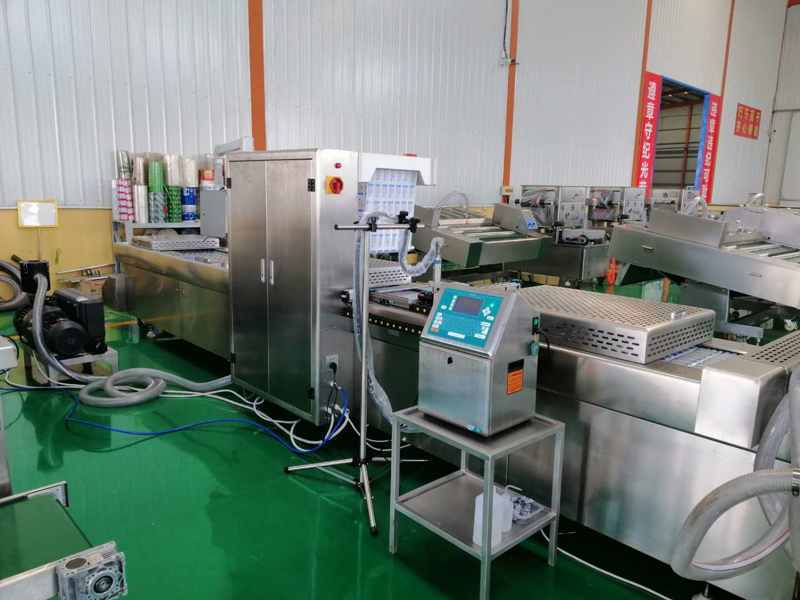

Machine function diagram
Continuous automatic vacuum packing machine mold configuration output
Machine design 520 model mold step is 550 mm (50 g) :
The mold style is 5x6, the outer size is 110x80.7mm, the inner size is 92x62mm.
Products are packed in 30 packs per step, 5-6 steps per minute, 150-180 packs per minute, 9000-10800 packs per hour, which translates into 450-540 kg per hour, with an average of 500 kg.
Continuous automatic vacuum packing machine:
The feeding device is fixed at the front of the feeding area of the machine.Device with packaging film stretching out on the tablet of grooves corresponding to 30 hopper boxes, equivalent to 30 quantitative cup internal tablet, while working to put the material in the material storage area on both sides of the first side, through artificial or mechanical dial plate will be opposite the material to the loading area, in the process of moving material automatic filling hopper box (basic is the capacity of 50 grams each hopper box), excess material dial walked to the other side of the material storage area.Then open the valve plate, the material automatically falls into the packaging film groove, to achieve automatic packing.
The outer size of the double-chamber vacuum packing machine is 110x80.7mm. For example, one type of equipment can pack 48 bags in one minute and 2880 bags in one hour, which translates into 144 kilograms of packaging per hour.
Thus, a continuous automatic vacuum packaging machine can complete three double chamber vacuum packaging machine production, saves the four operations of the workers' labor costs, that is why now in the cause of the continuous automatic vacuum packaging machine more and more, we are committed to provides a good solution for the masses of users, warmly welcome your arrival!
